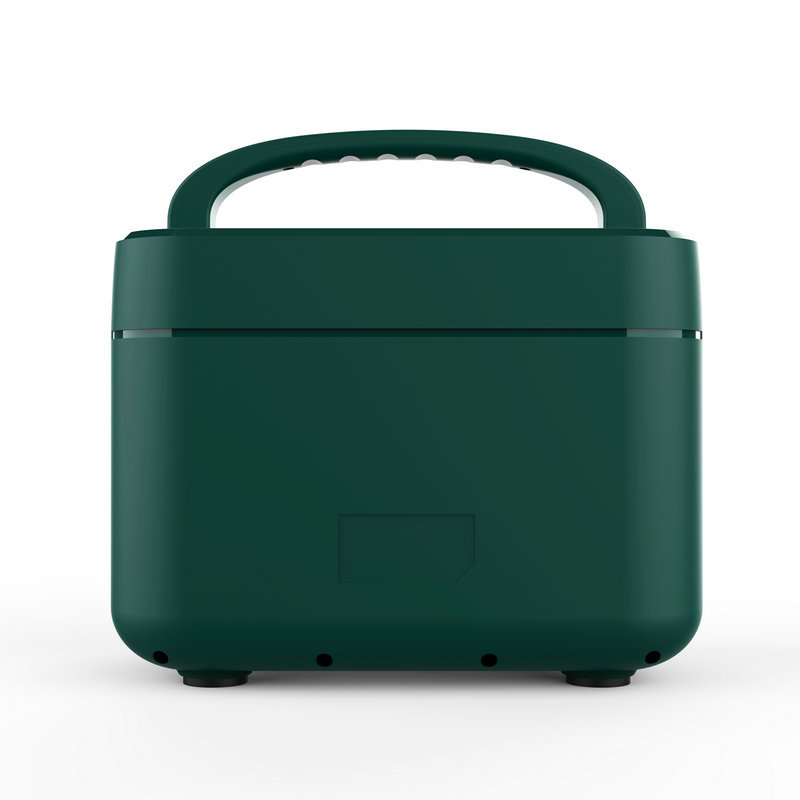

Appearance dimensions: Length 366, Width 235, Height 267
Shell material: Main body: plastic
Plastic part: ABS + pcVO fire-resistant material
32700 battery: Lithium iron phosphate 32650 7 series 7 parallel single cell 6700 MHA 1050 Wh
Rated voltage: 25.5V
Charging: DC charging XT60 interface 27V 18.5A 500W requires current limiting 25A to support MPPT solar charging when fully charged
Time: 2.5 hours
AC AC power 800W fully charged time 1.7 hours

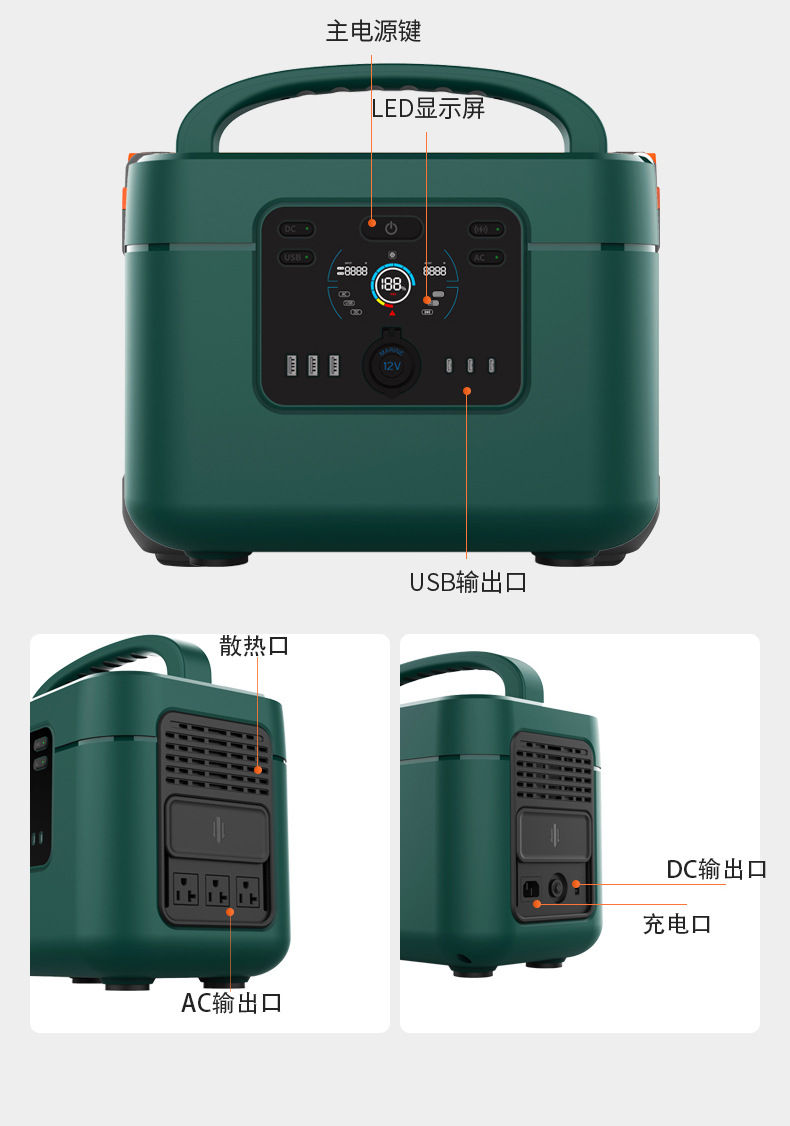

DC output: USB1: QC3.0 fast charging protocol / 5V 2.4A, 9V 2A, 12V 1.5A / BC1.2 AFC FCP fast charging protocol
USB2: 5V 2.4A for IQ recognition charging output
USB3: 5V 2.4A for IQ recognition charging output
Type-C1: bidirectional PD 65W 5V 5A 9V 5A 12V 5A 20V 5A compatible with QC3.0 fast charging protocol
Type-C2: unidirectional output PD 18W compatible with QC3.0
Type-C3: unidirectional output PD 18W compatible with QC3.0

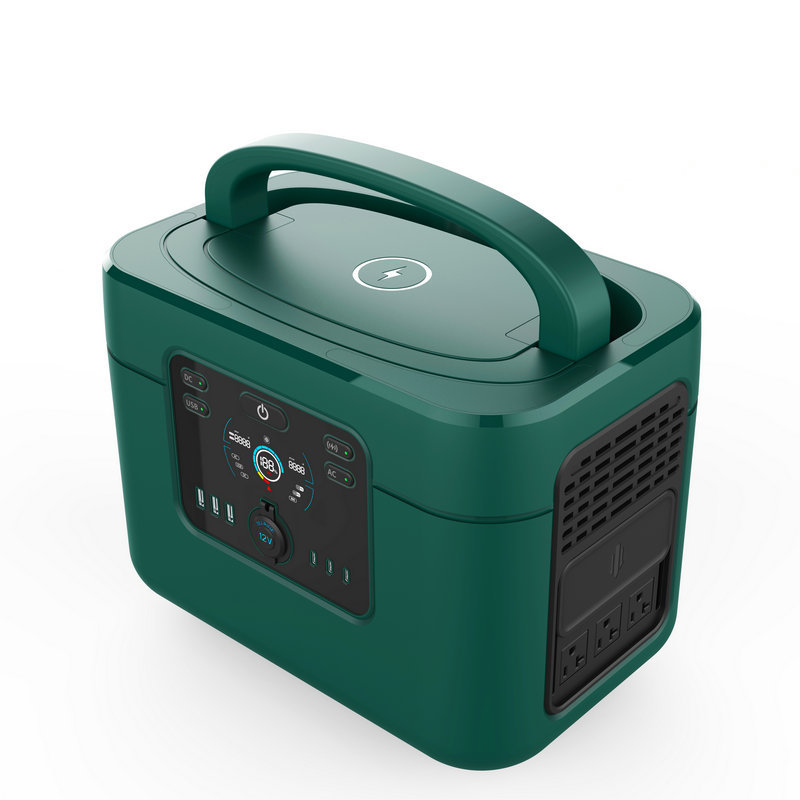

Wireless charging: supports 18W wireless charging
Cigarette lighter output: DC 12.5V 10A * 1

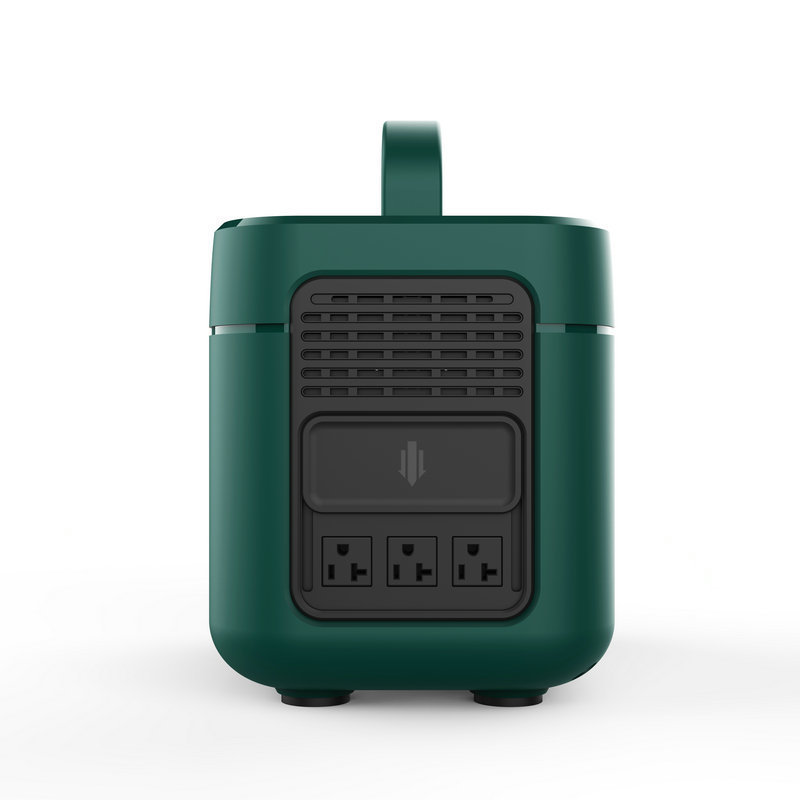

AC output: Voltage: 110V + -5V AC / 220V + -5V AC sinusoidal wave
Frequency: 60Hz + -3Hz / 50Hz + -3Hz
Rated power: 1200W
Overcurrent power: 1500W for 15 seconds
Instant peak: 2000 watts Charging
AC alternating current power: 800W. Charging time: 1.7 hours.
USB1: QC3.0 fast charging protocol / 5V 2.4A / 9V 2A / 12V 15A / BC12 AFC FCP fast charging protocol. USB2: 5V 2.4A for IQ identification of charging output. USB3: 5V 2.4A for IQ identification of charging output.
Type-C1: Bidirectional PD65W with 5V 5A, 9V 5A, 12V 5A, 15V 5A, 20V 5A compatible with QC3.0 fast charging protocol. Type-C2: Unidirectional output PD18W compatible with QC3.0. Type-C3: Unidirectional output PD18W compatible with QC3.0.
DC output / Wireless charging: Supports 18W wireless charging.
Smokestack output: DC 12.5v 10A * 1
Voltage: 110V ± 5VAC / 220V ± 5VAC sine wave Frequency: 60HZ ± 3HZ / 50HZ ± 3HZ Rated power: 1200W
AC output instantaneous peak: 2000W Overcurrent power: 1500W for 15 seconds
The output frequency of AC needs to be adjusted by pressing the buttons: 60Hz/50Hz
Appearance dimensions: Length 366, Width 235, Height 267
