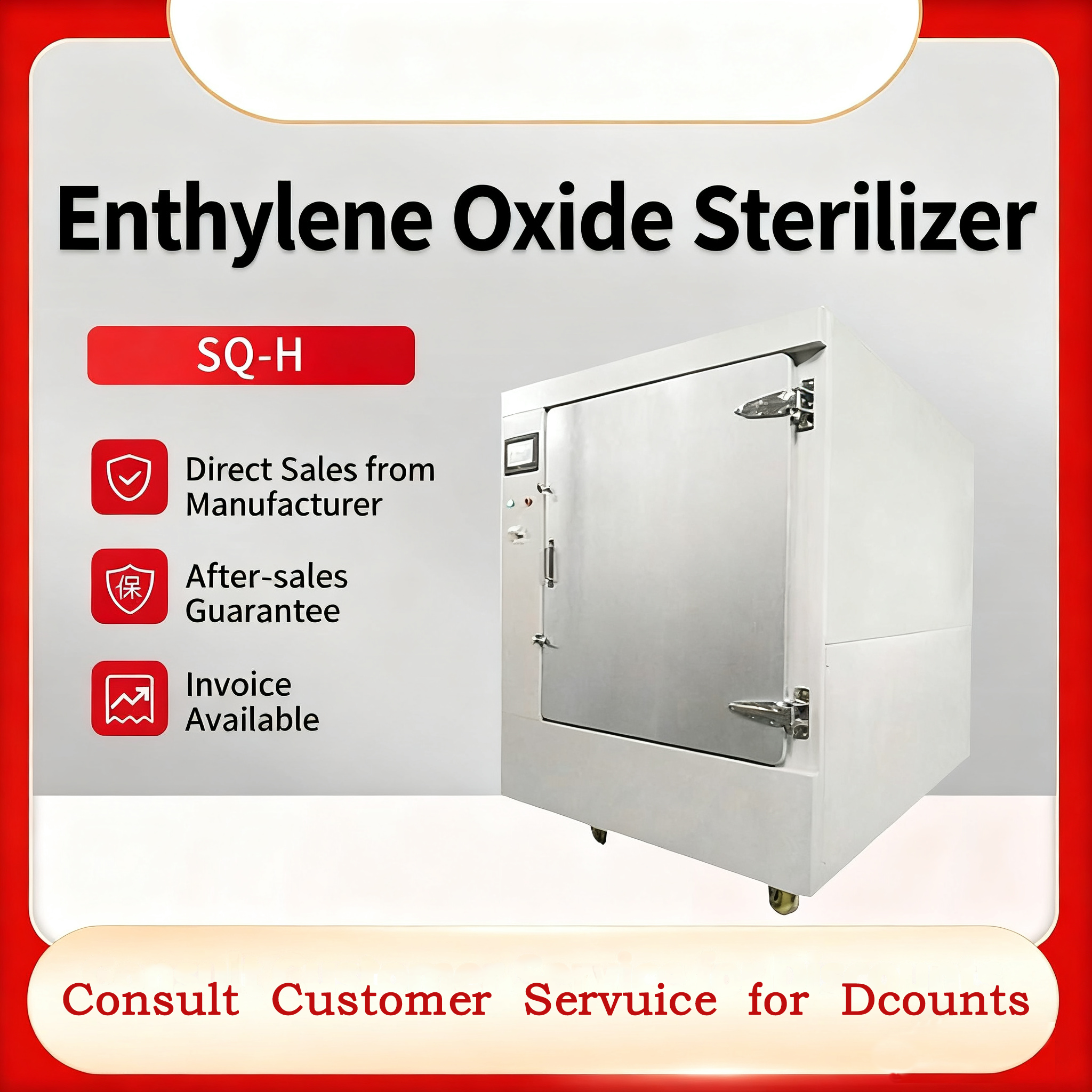

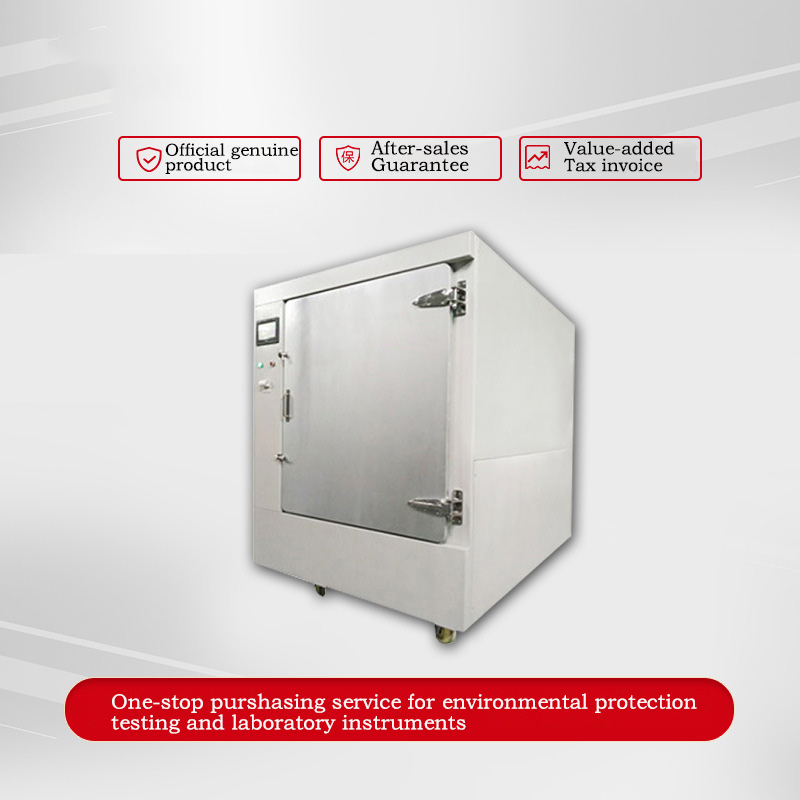

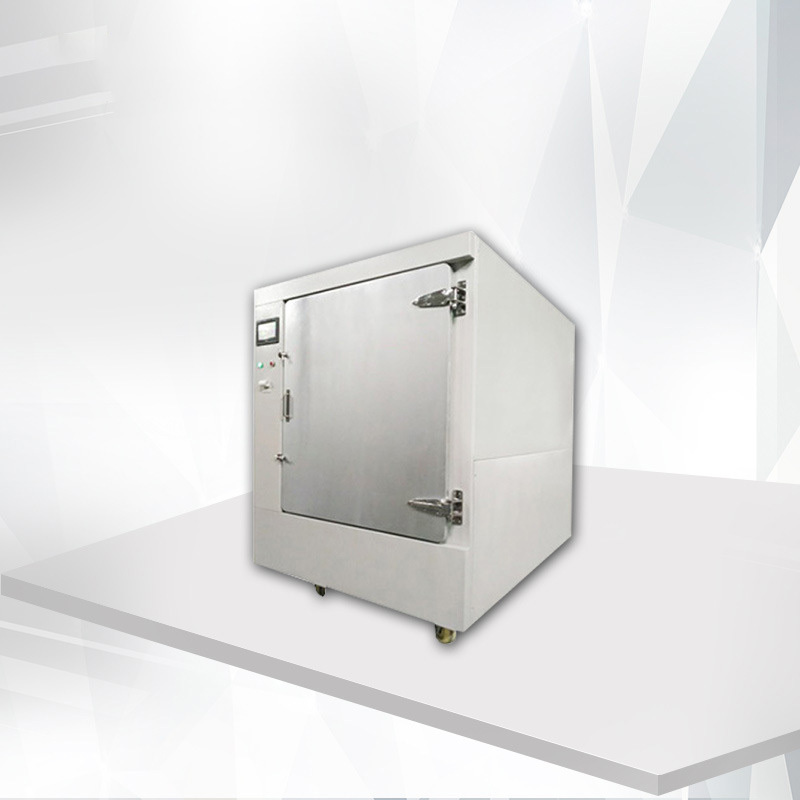

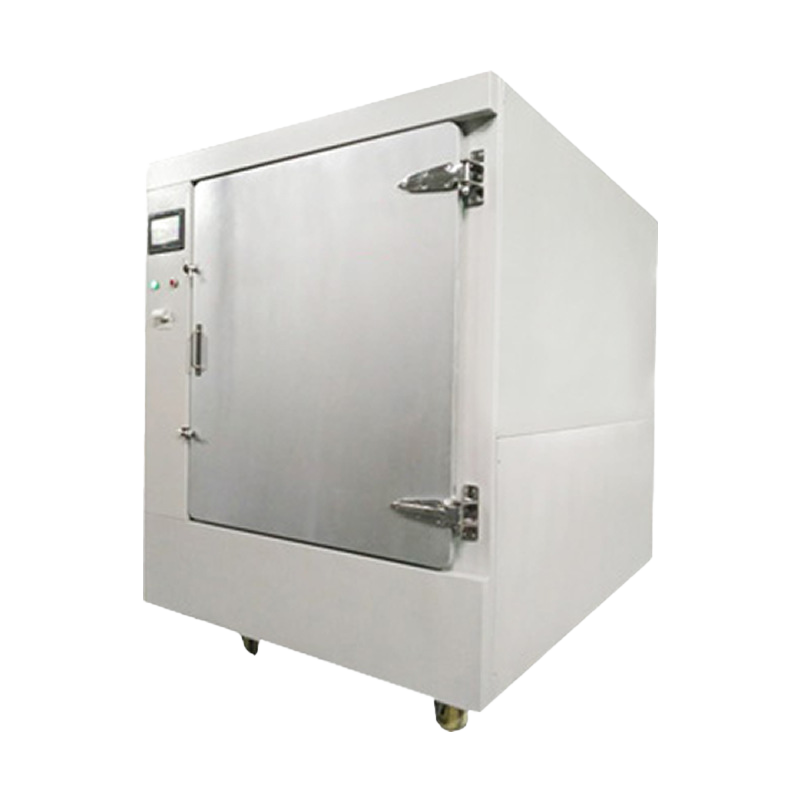

Ethylene Oxide Sterilizer

Humidity sensor: Built-in humidity sensor automatically detects the humidity inside the chamber to ensure that the humidity inside the chamber is not lower than 45% RH.
Pressure sensor: Built-in pressure sensor automatically detects the pressure inside the chamber to ensure the accuracy and effectiveness of the pressure inside the chamber.
Temperature sensor: Built-in temperature sensor automatically detects the temperature inside the chamber to ensure that the temperature inside the chamber is maintained within the range of 50℃ ± 3℃.





Humidification system:
Pulse humidification in vacuum state to ensure uniform and controllable humidity inside the chamber; the humidity inside the sterilization chamber should be controlled within the range of relative humidity 45%-80%;
Residual gas treatment device: Filter to remove particles with a diameter of ≥ 0.3μm, with a filtration rate of no less than 99.5%.
Sterilization chamber leakage rate: The leakage rate is determined under no-load conditions, with a sterilization chamber temperature remaining unchanged, a test pressure of -50kPa, and a measurement time of 1 hour. The average leakage rate within the measurement time

Product form: Manual door cabinet type
Heating method: Electric heating
Electric: AC380V, 50Hz Source
Sterilization room dimensions: (length x width x height): 2030 x 900 x 1100 mm
Outer box dimensions: (length x width x height): 2250 x 1470 x 1880 mm
Sterilization room material: 304 anti-corrosion stainless steel
Outer box material: Temperature during sterilization: Carbon steel (1.8mm thick) plastic-coated steel sheet 50℃ ±3℃ (consultation)
Working pressure: High resistance value: -140kpa, -6Qkpa (global range) Comparative pricing
Humidity during sterilization  ：45%-75%
Selected gas ：Mixed gas (80% Ethylene Oxide, 15% Carbon Dioxide, 5% Catalyst)
Inquiry: Sterilization concentration of ethylene oxide    Search Q, Copy    Negotiation
Sterilization time ：0-99 hours adjustable
Vacuum speed ： Air replacement    Automated ventilation, ventilation frequency and interval time can be freely set    25 minutes to -60 kPa





Full automatic control system
One-click start to end, the entire process is automatically completed with printing records

Display status
Display temperature, humidity, pressure, sterilization time, residual gas treatment time, frequency Comments

Printer
Record sterilization information throughout the process for verification and verification.

Humidity sensor
Internal humidity sensor automatically detects the humidity inside the chamber to ensure the humidity inside the chamber is not lower than 45% RH.

Pressure sensor
Internal pressure sensor automatically detects the pressure inside the chamber to ensure the accuracy and effectiveness of the pressure inside the chamber.

Temperature sensor within an accurate range of ±3°C.
Internal temperature sensor automatically detects the temperature inside the chamber to ensure the temperature inside the chamber is maintained at 50°C. The humidification system should control the relative humidity within the range of 45%-80%; Pulse humidification in vacuum state to ensure uniform and controllable humidity inside the chamber; Sterilization chamber wet


Residual gas treatment device
Filter to remove particles with a diameter of ≥0.3 μm, with a filtration rate of no less than 99.5%.
Leakage rate measurement is carried out under no-load conditions, with the sterilization chamber temperature remaining unchanged, the test pressure is -50 kPa, and the leakage rate of the sterilization chamber is measured

Leakage rate of the sterilization chamber
under a 1-hour test time, the average leakage rate during the measurement time. ≤0 16kPa/min
