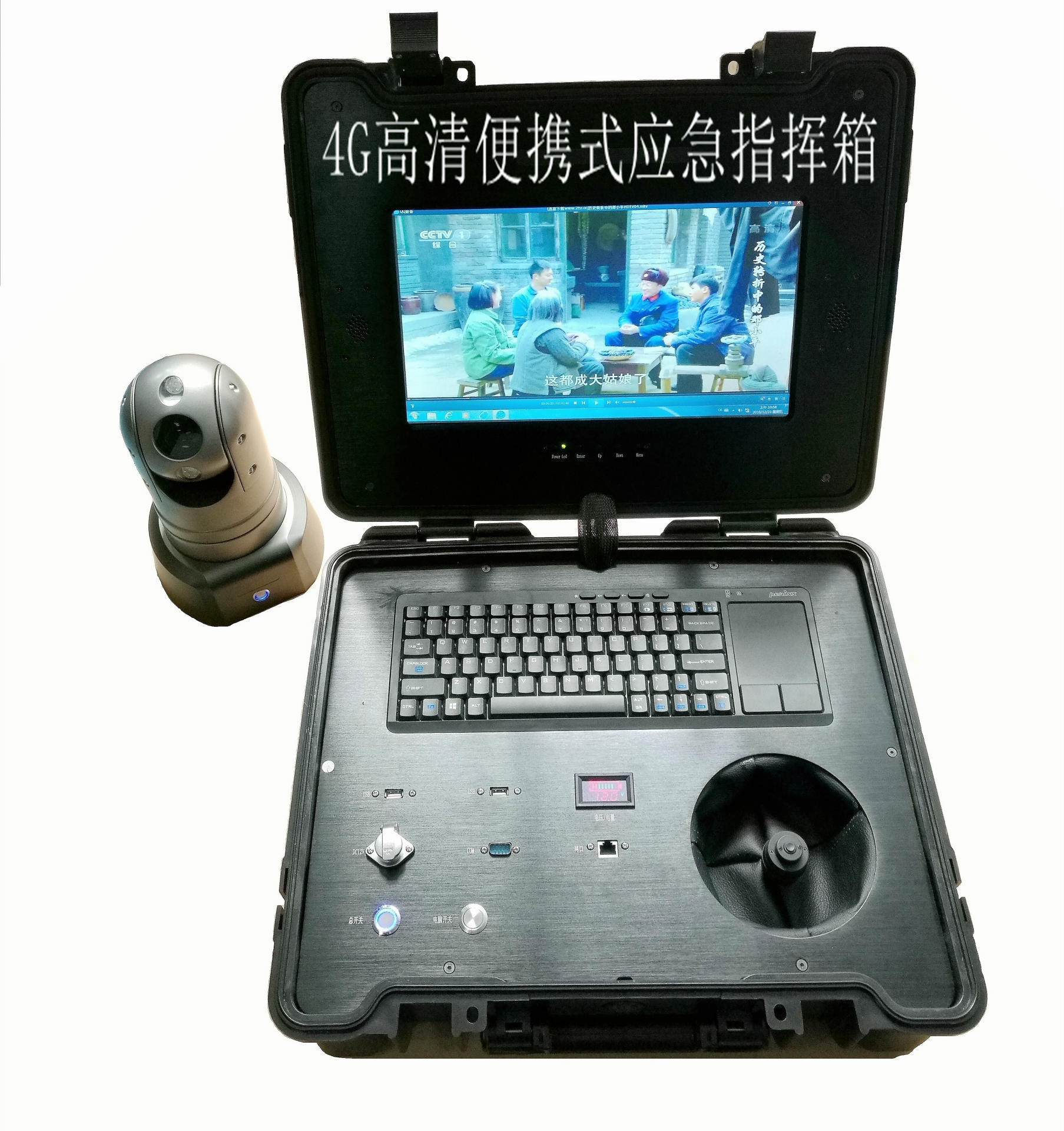

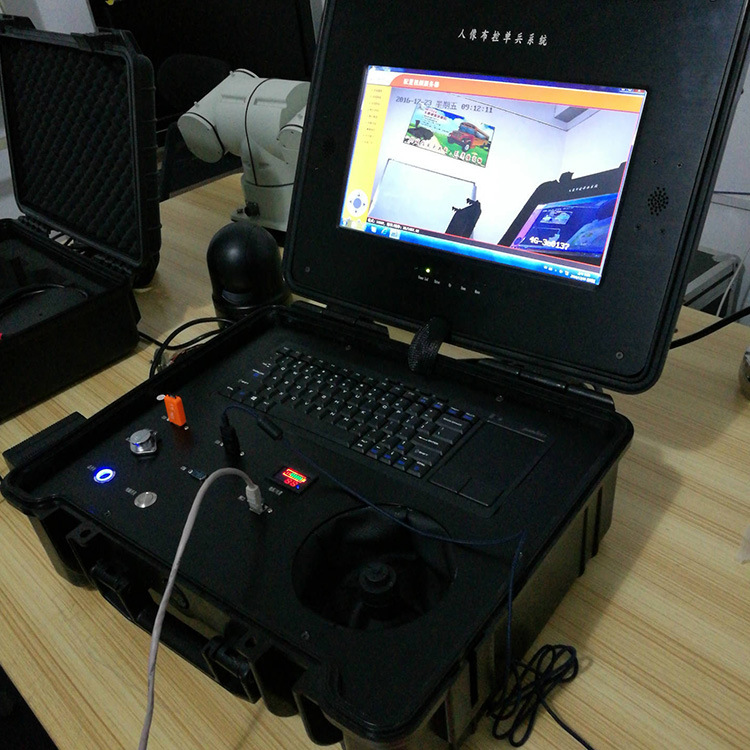

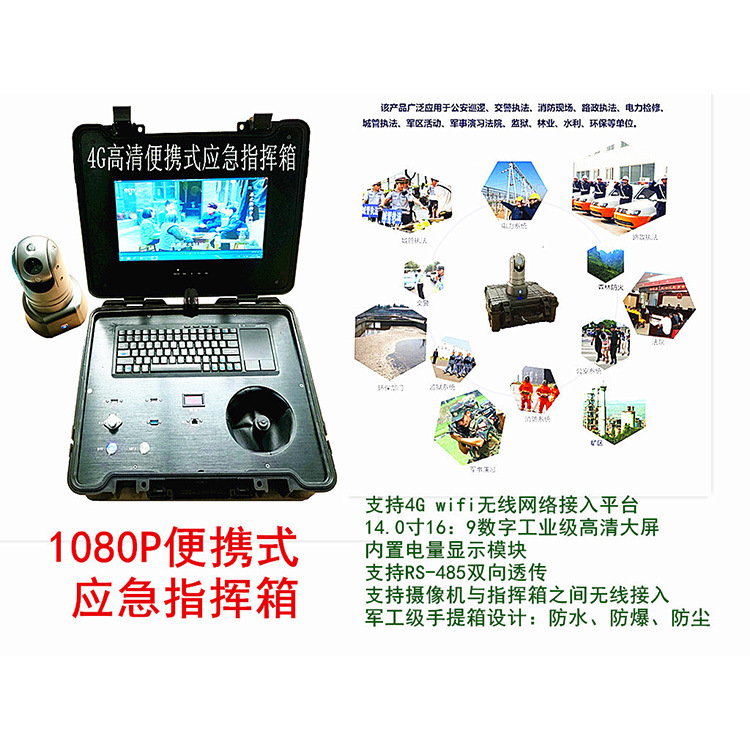

Portable emergency video conference command and dispatch system
 |
system :PAL/NTSC |
| Pixel :1080P |
| Communication methods :4G/WIFI/RJ45 network port / expandable COFDM microwave |
| Rotational speed :Horizontal: 0.1° to 220°/s; Vertical: 0.1° to 200°/s |
| S/N Signal-to-Noise Ratio :≥50dB |
| Low illumination :0.01 Lux |
| Image flipping :No |
| Switching method :Switching between day and night |
| Gain Control :Automatic / Manual |
| Backlight compensation :Automatic / Manual |
| Optical zoom ratio :20× |
| Night vision illumination Night vision range: 150 meters |
| Positioning accuracy :0.05 degrees |
| Rotation angle:Horizontal: Rotates continuously from 0° to 360°; Vertical: -10° to 90° with automatic flipping |
| Power supply / Power :DC 12V ± 0.5V / 15W |
| Control method:RS485 bus control |
| Communication baud rate :1200bps, 2400bps, 4800bps, 9600bps, 19200bps |
| Address code range :0 to 25 |
| Number of preset points :255 |
| Automatic cruise control :8 items (each with 16 preset points) |
| Net weight:1kg |
| Dust and water resistance rating :IP66n |
